19 inch PDU

ENERGIS

Managed PDU for 19 inch rack environments.

ENERGIS is a managed power distribution unit for server racks, test benches, and automation setups that need switched AC outputs, network control, and power monitoring in a 19 inch rack format.

ENERGIS 19 inch managed PDU enclosure view

Coming soon

Power control for full-size rack setups.

ENERGIS is intended for setups where individual AC outputs need to be switched, monitored, and controlled from the network in a standard 19 inch rack.

Specifications

Core product information for the ENERGIS 19 inch variant.

Input 110-230 VAC
Outputs 8x 110-230 VAC switched outputs
Load rating 15 A per output, 15 A maximum total load
Per-output monitoring
  • Voltage
  • Current
  • Power
  • Uptime
Protection Overcurrent protection with hysteresis
Network 100Base Ethernet
Interfaces
  • USB-CDC UART
  • Web UI
  • SNMP
  • Metrics/Prometheus
Manual control Front panel control for local operation
Presets
  • 5 user presets
  • One preset assignable as startup configuration
Power state Sleep mode support

Electrical variants

Regional electrical configurations for ENERGIS.

EU, IEC/ENEC
  • Input: 230VAC, 15A max
  • Output: 230VAC, 10A max per channel
  • 15A maximum combined output current
US/Canada, UL/CSA
  • Input: 110VAC, 20A max
  • Output: 110VAC, 15A max per channel
  • 20A maximum combined output current

Initial ENERGIS 19 inch product images.

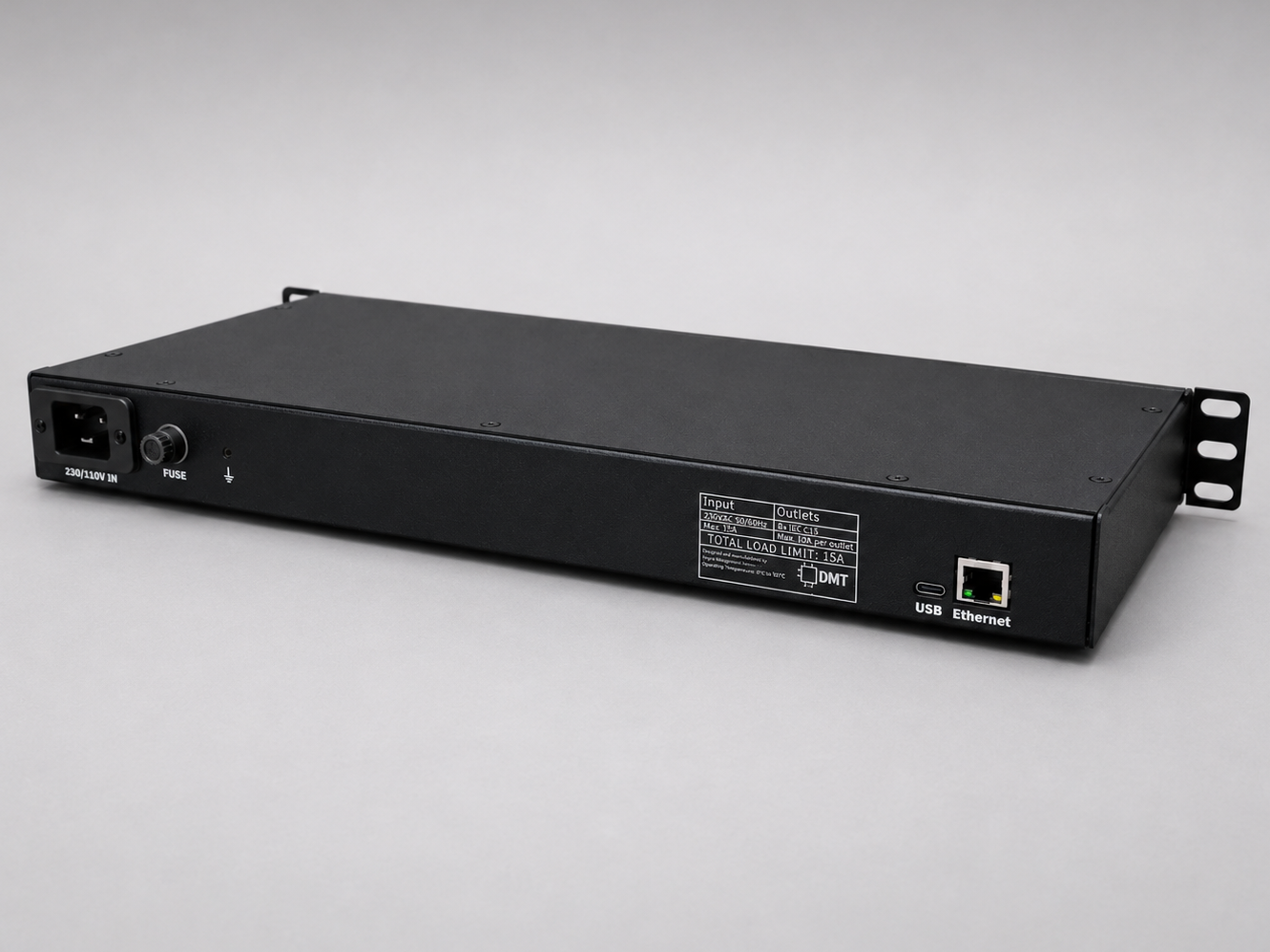

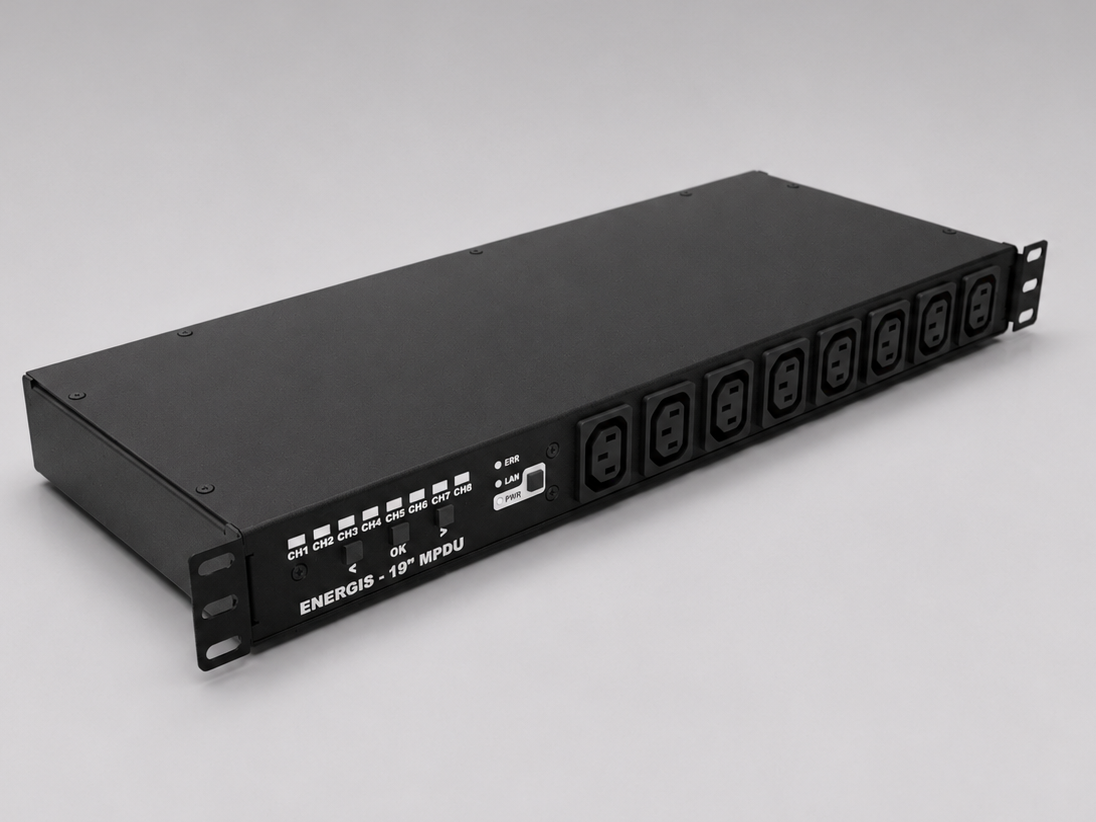

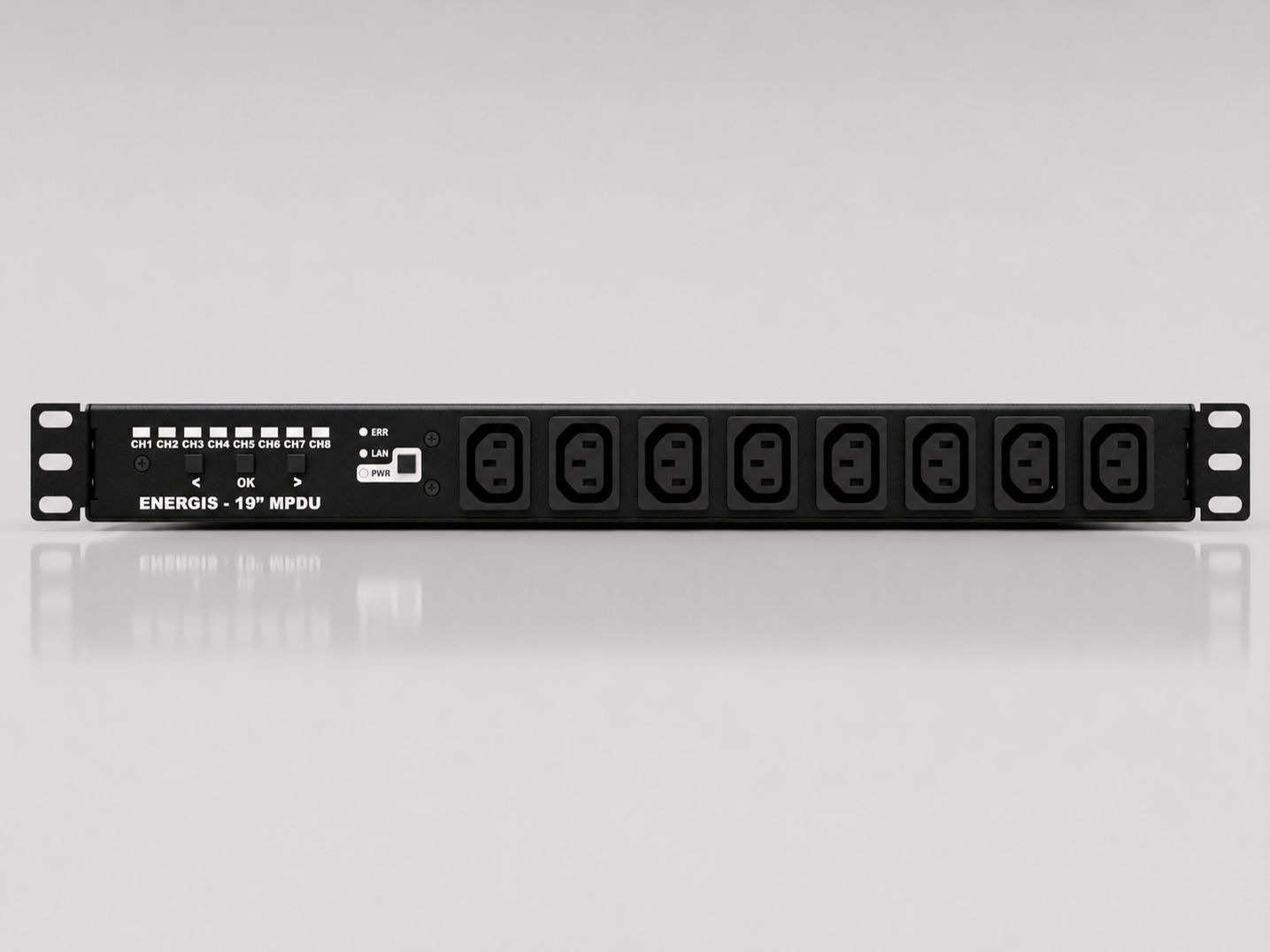

ENERGIS 19 inch managed PDU front viewENERGIS 19 inch managed PDU product viewENERGIS 19 inch managed PDU detail viewENERGIS 19 inch managed PDU enclosure view

Documentation

Manuals and technical reference material.

Coming soon
